Aluminium joist for rapid flow
Aluminium joist for rapid flow

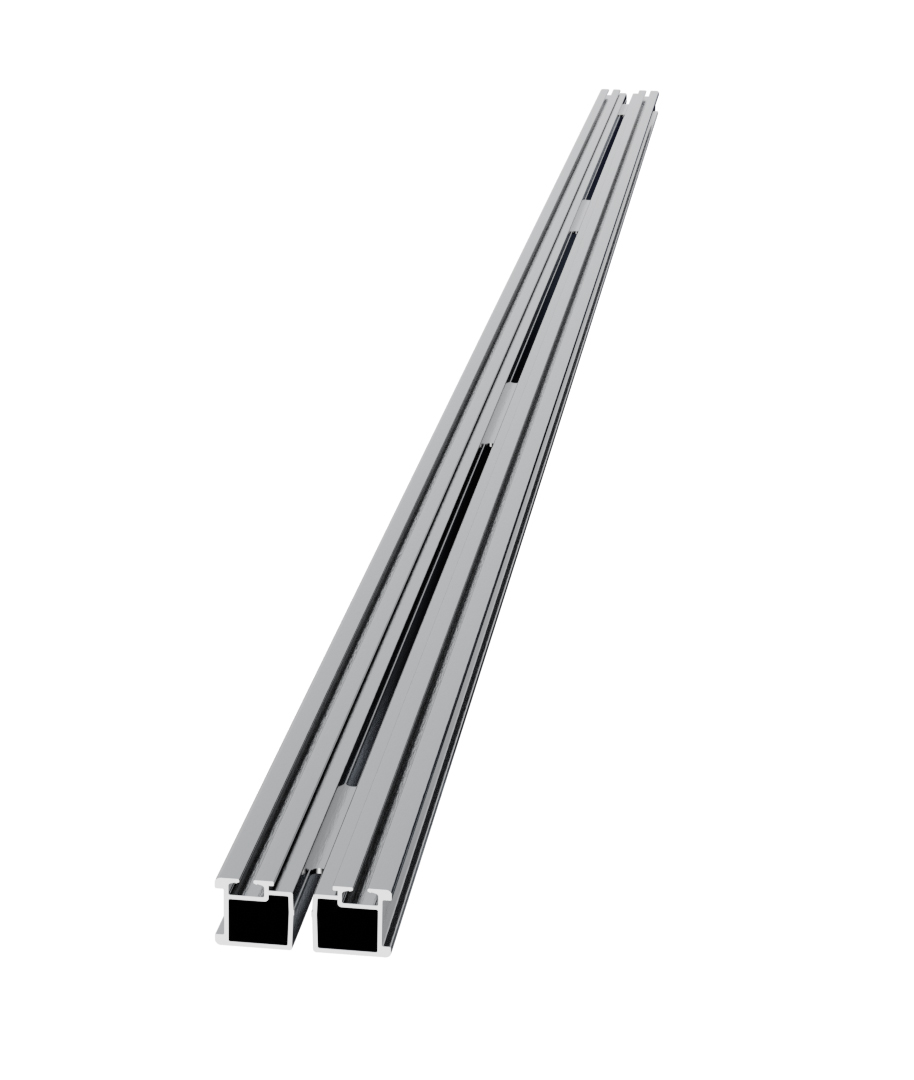

The aluminium joist for rapid flow is a “double joist” consisting of two profiles spaced by a 6.5 mm gap which serves as drainage for the rapid outflow of rainwater.
It has been designed for the installation of porcelain stoneware slabs, multi-format slabs, wooden planks and composite material.
The upper part is equipped with two special lanes into which a PVC gasket can be placed. As well as the anti-noise function, it also keeps the slabs or the wooden planks distanced from the aluminium joist for a perfect ventilation of the structure.
It is compatible with all heads for aluminium joist and accessories of the Pedestal and Woodeck systems.
| Code | Type | Size | Price list |
|---|---|---|---|
| Q231420026 | Aluminium joist for rapid flow | 60x25 mm L. 2000 mm | Register to view |
